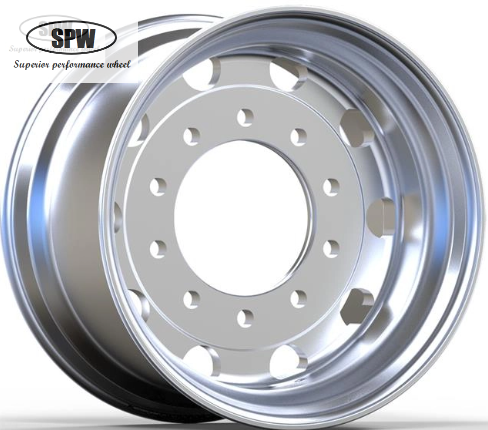

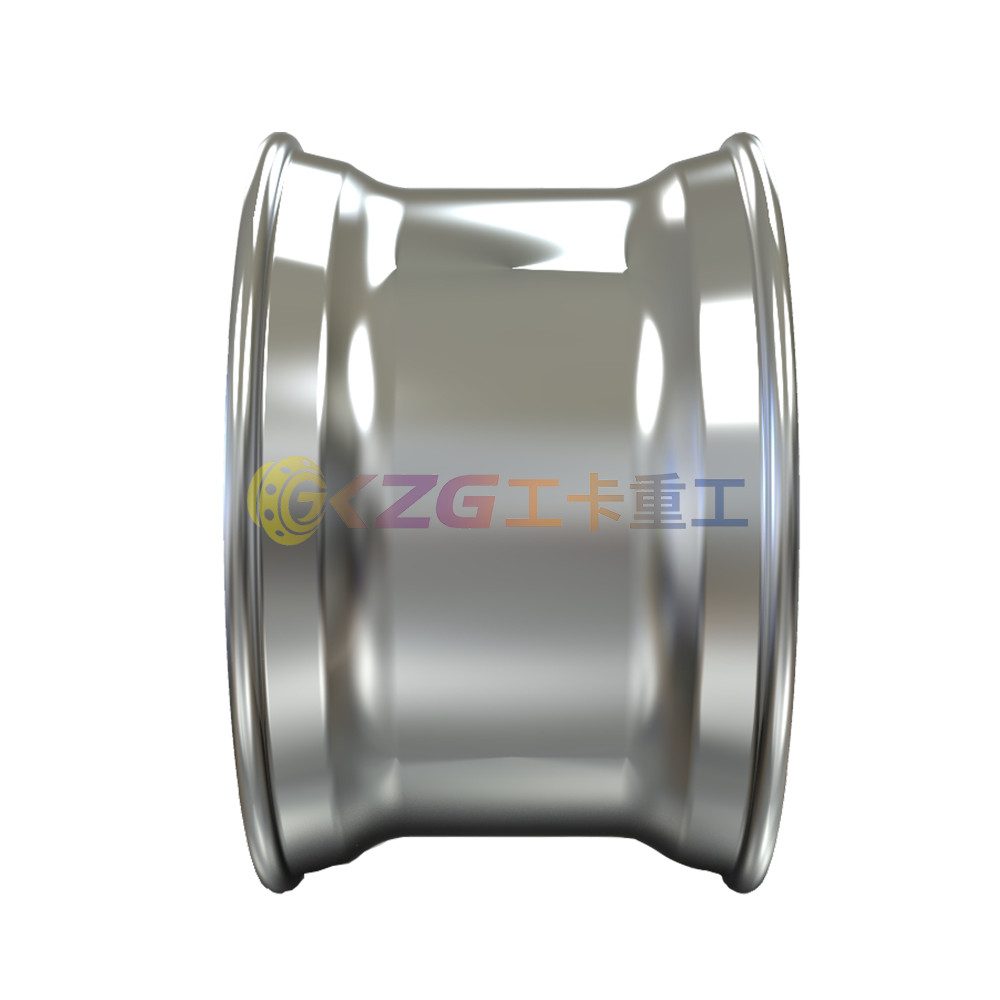

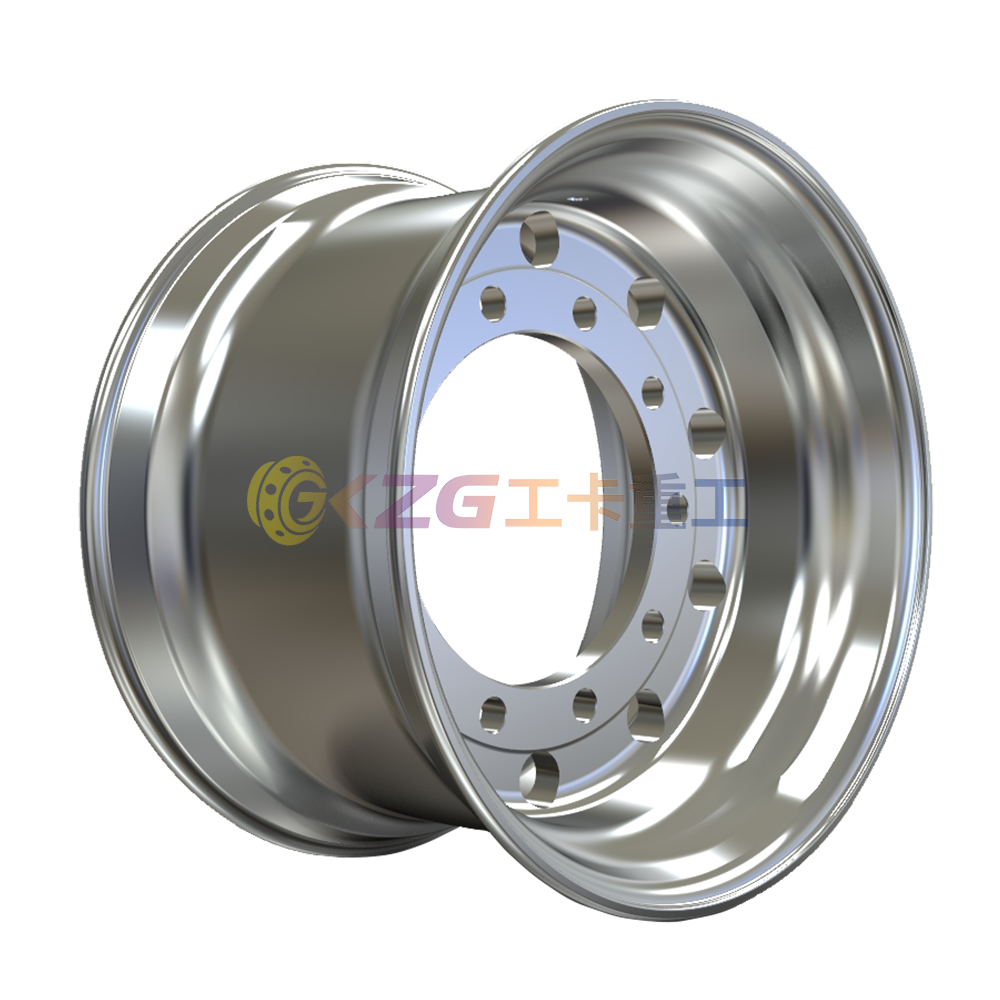

Aluminum Alloy Truck Wheels Forged Rims 22.5X13.00
Aluminum Alloy Truck Wheels Forged Rims 22.5X13.00
Matched tire size: 445/65R22.5
Product name: Forged Aluminum wheel
Size: 22.5*13.00
Material: Aluminum
Color: Silver
Load Capacity: 5200KGS
MOQ and Leadtime: 50PCS / 25 days Warranty Period: 3 Years
Type: Truck Accessories
Place of Origin: Shandong, China(Mainland)
OEM: Support (OEM for BYD, YUTONG, DONGFENG, SHANXI AUTOMOBILE etc.) Certificate: ISO9001/TS16949, INMETRO, EAC, DOT
Product Description

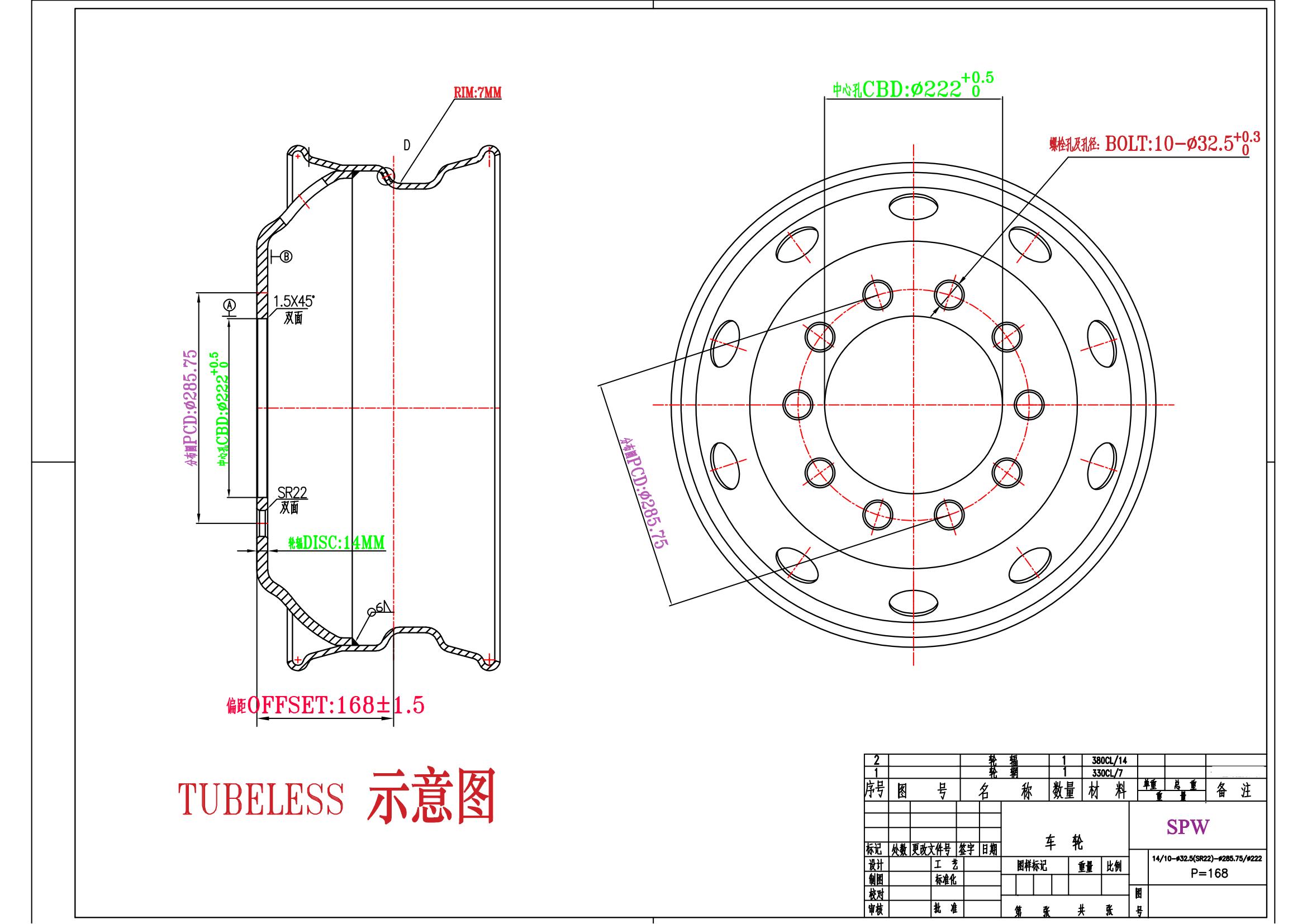

1. Product diagram:
(data in the diagram just as the referance)
2. Product Parameters
| WHEEL SIZE | MAX LOAD(kg) | INSET(mm) | OUTSET(mm) | DISC THICKNESS(mm) | P.C.D(mm) | C.B.D(mm) | BOLT HOLE DIA.(mm) | HAND HOLE | TIRE |
| 22.5×13 | 5700 | 0 | 28 | 28 | 10xØ335 |
Ø281.2 |
Ø26.75 |
10-Ø40 |
445/65 R22.5 |
| 22.5×13 | 5700 | 0 | 28 | 28 | 10xØ285.75 | Ø220.1 | Ø26 | 10-Ø40 | 445/65 R22.5 |
3. Product Package
Three package types can be chosen, including pallet type, carton type, non-woven package, as below. And also can be negotiated.
Assembled tire and wheel can be arranged as well!
