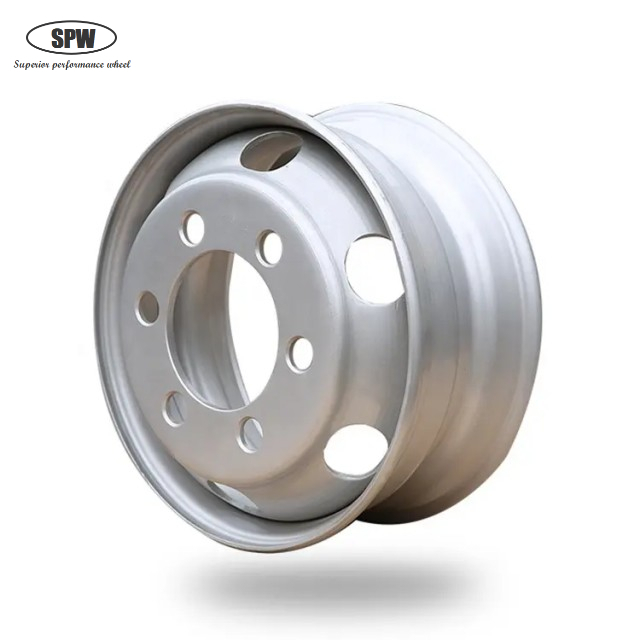

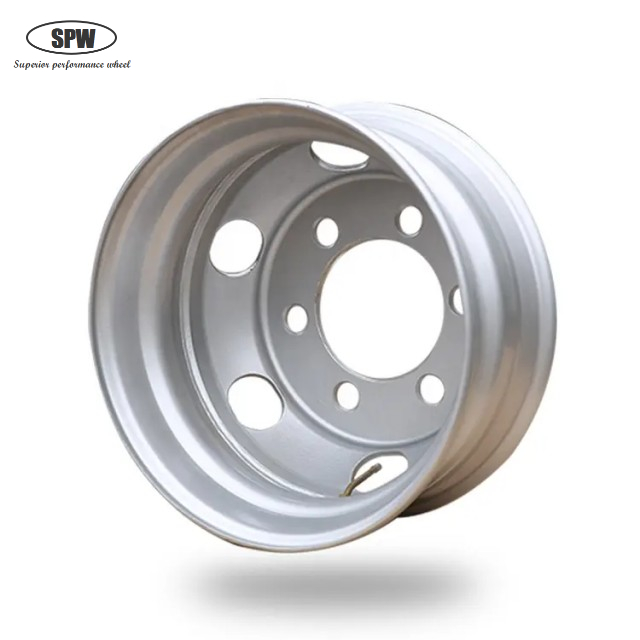

Tubeless Steel Wheel Rim 19.5*7.5 Matched Tire Size 9R19.5
Tubeless Steel Wheel Rim 19.5*7.5 Matched Tire Size 9R19.5
Product name: STEEL WHEEL
Material: Steel, 440CL/420CL
Color: Silver/white/yellow/green/blue etc. (can be customized)
Load Capacity: 2350KGS
Warranty Period: 3 Years
Type: Truck Accessories
Certificate: ISO9001/TS16949, INMETRO, EAC, DOT
Product Description

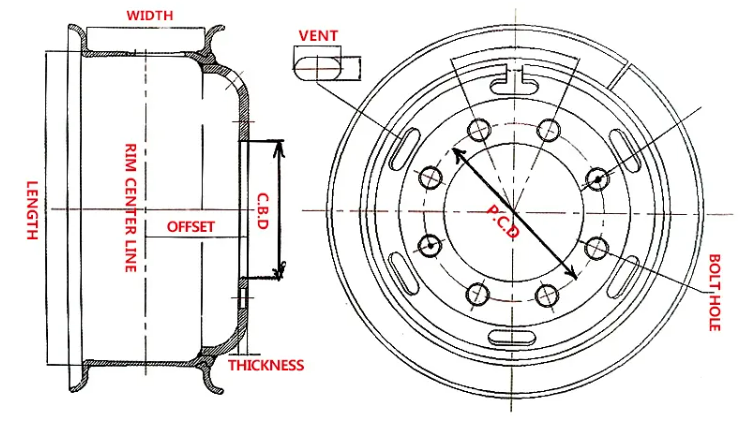

1. Product diagram:
( just as the referance)
2. Product Parameters
|
Tubeless Steel Wheel Parameters |
|||||||||
| Rim Size |
Rim Thickness (mm) |
Disc Thickness (mm) |
Nut Hole | P.C.D | C.B.D. | Pffset | Tire | ||
| NO. | DIA. | Hole Type | |||||||
|
19.5*7.50 |
6 | 12 |
8 |
Ф26 |
JSR18 | Ф275 | Ф221 | 144 |
265/70R19.5 |
| 19.5*7.50 | 6 | 12 |
8 |
Ф24 | H1 | Ф275 | Ф221 | 133 | 265/70R19.5 |
| 19.5*7.50 | 6 | 12 |
10 |
Ф26 | H1 | Ф225 | Ф176 | 135 | 265/70R19.5 |
| 19.5*7.50 | 6 | 12 |
6 |
Ф21.5 | ISR16 | Ф205 | Ф161 | / | 265/70R19.5 |

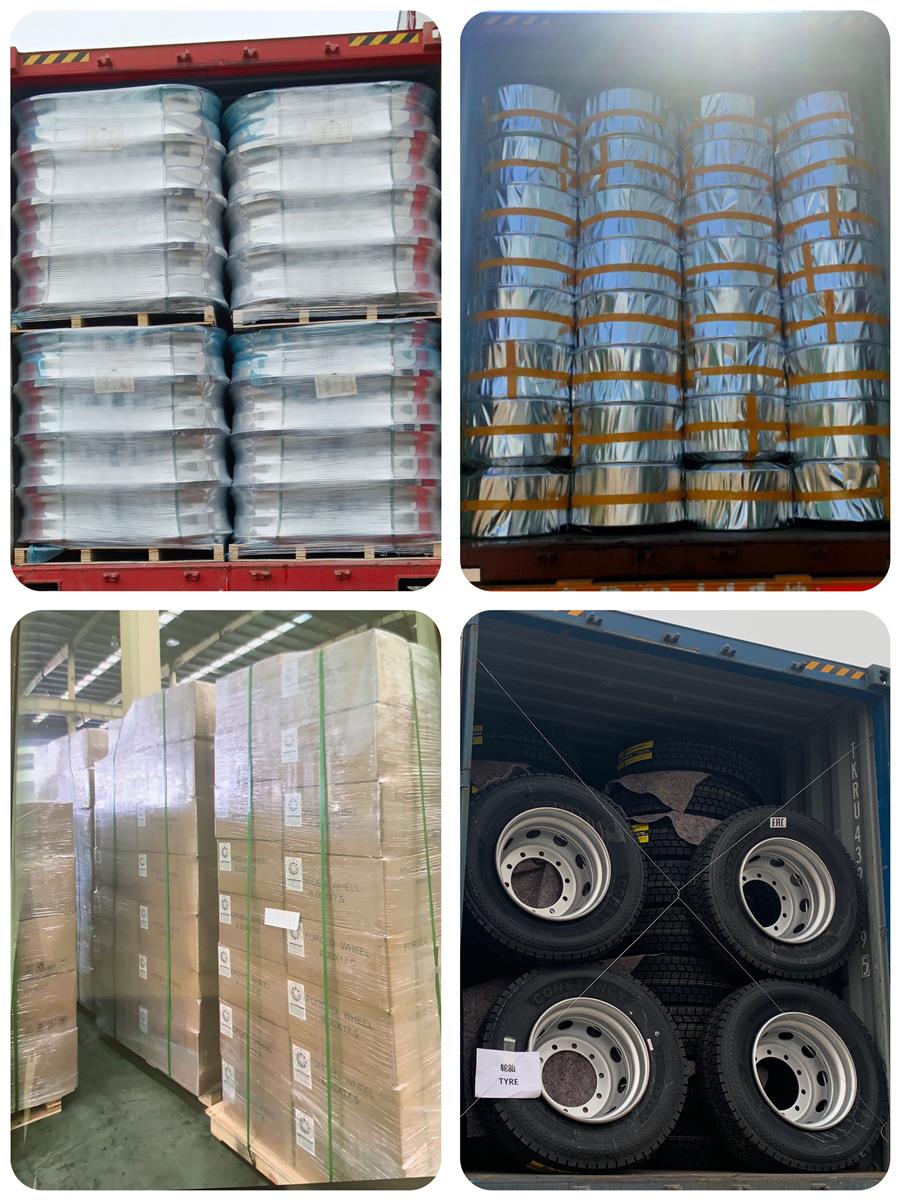

3. Product Package
Three package types can be chosen, including pallet type, carton type, non-woven package, as below. And also can be negotiated.
Assembled tire and wheel can be arranged as well!
